GENERAL SPEC.

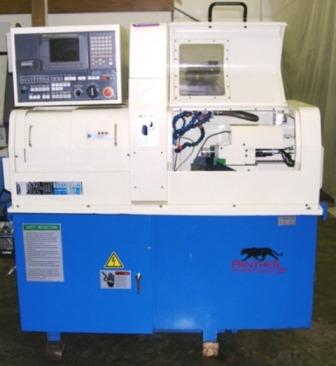

Tsugami BO12B Type III, Swiss Turn CNC
2000
TSUGAMI B012B-III |
|
|
Max Diameter Bar
Capacity |
0.5" |
|
Max Machining Length |
6.7" |
|

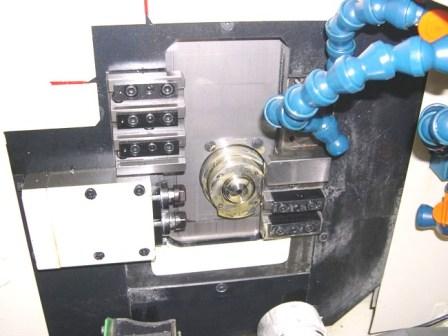

Main Spindle Motor |
3 HP |
|
Main Spindle Speed |
200 - 8000 RPM |
|
Main Spindle Indexing |
.001 Degrees |
|
Number of Tools |
13 |
|
Turning Tools |
5 |
|
Live Tools |
2 |
|
Front End -
Working Tools |
3 |
|
Backworking Tools |
3 |
|
Rapid Traverse Rates
(X/Y/Z) |
480 / 708 IPM |
|

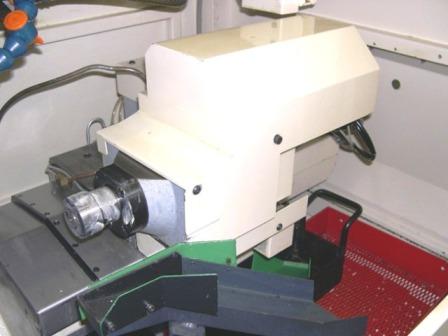

Sub Spindle Motor |
0.5 HP |
|
Sub Spindle Speed |
200 - 5,000 RPM |
|
X1-Axis Travel |
1.26" |
|
Y1-Axis Travel |
3.94" |
|
Z1-Axis Travel |
6.7" |
|
X2-Axis Travel |
1.26" |
|
Max Front Rotary
Drilling/Tapping Dia. |
4mm / M3 x 0.5 |
|
Max Front
Drilling/Tapping Dia. |
7mm / M6 x 1 |
|
Max Back
Drilling/Tapping Dia. |
4mm / M3 x 0.5 |
|
Machine Dimensions (L x
W x H) |
63" x 36" x 67" |
|
Machine Weight |
4,180 lbs. |
|
|
|
FEATURES: |
|

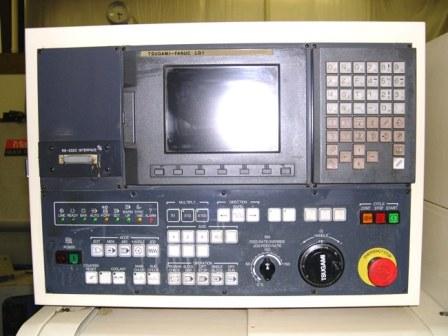

TSUGAMI FANUC LG1 CNC
CONTROL |
|
C-Axis Milling
Capability on Main
Spindle |
|
Programmable Sub Spindle |
|
7.2" Monochrome LCD |
|
Auto Parts Catcher |
|
(5) Turning Holders |
|
(2) Cross Milling
Holders |
|
(3) Position Double
Drilling Unit |
|
Fedek 12 ft. Magazine
Barfeed |
|
|
Call or
email ISMS
for Machine Quote
