SWISS TURNKEY SPECIALIST
Used Swiss CNC Screw Machines:  ISMS buys, sells and Brokers used machines



Used Citizen B12 Swiss CNC Screw Machine with turret For Sale:


CITIZEN B(3) 12-VI, 8/2007 INSTALL,

SPECIFICATIONS:

MAXIMUM MACHINING DIAMETER....... .47" (12MM) -- FRONT & BACK SPINDLE
MAXIMUM MACHINING LENGTH......... 5.31" (135MM) PER CHUCKING
MAIN SPINDLE SPEEDS.............. 100 - 12,000 RPM (5 DIGIT STEPLESS COMMAND)
MAIN SPINDLE INDEX............... 1 DEG
BACK SPINDLE SPEEDS.............. 100 - 7,000 RPM (S4-DIGIT DIRECT COMMAND)
LIVE TOOL SPEEDS................. 100 - 4,500 RPM
NUMBER OF TOOLS TO BE MOUNTED:
-CUTTING TOOLS................... 5 POSITIONS
-ROTARY TOOLS.................... 3 POSITIONS
-FRONT DRILLING TOOLS............ 4 POSITIONS
-BACK DRILLING TOOLS............. 4 POSITIONS
TOOL SIZE........................ 3/8" X 3/8" X 4-3/4" (.75" SLEEVE DIA.)
RAPID TRAVERSE (X,Y/Z/A2 BACK)... 826 / 590 / 472 IPM
APPROX. MACHINE WEIGHT........... 2,866 LBS

EQUIPPED WITH:

C-LUB12 BARTOP LUB-21 AUTOMATIC BAR LOADER ($21,000 VALUE)
FANUC 18i-TB CONTROL AND FOUR CUTTING AXES
SIMULTANEOUS 4 AXES CONTROL
CANNED CYCLE FOR THREADING, MAIN (G92)
CONSTANT SURFACE SPEED CONTROL, MAIN (G96)
MAIN & BACK SPINDLE SPEED SYNCHRONIZATION
MINIMUM INCREMENT (0.0001 INCH)
BACKGROUND EDITING
PROGRAM CHECK FUNCTION (RUN PROGRAM USING PULSE GENERATOR)
RADIUS DESIGNATION ON ARC
SINGLE POINT THREADING
TOOL NOSE RADIUS COMPENSATION (C-A02B-0283-J930) - $1,540 OPTION

** THIS MACHINE IS NOW A "SPECIAL ORDER" MACHINE FROM CITIZEN WITH 4+ Month delivery

** THIS MACHINE HAS A MANUFACTURE DATE OF 12/2006.  IT WAS INSTALLED IN 8/2007
** MACHINE WAS USED FOR TWO YEARS, THEN JOB WAS LOST. IT HAS NOT SEEN
    PRODUCTION IN THE LAST 12 MONTHS.

** THIS MACHINE IS IN PLANT, UNDER POWER AND AVAILABLE FOR IMMEDIATE DELIVERY

*** WE REPRESENT THIS MACHINE TO BE IN EXCELLENT CONDITION.


Price is $CALL or EMAIL (Turnkeys and training is additional)

Call or email ISMS for Machine Quote

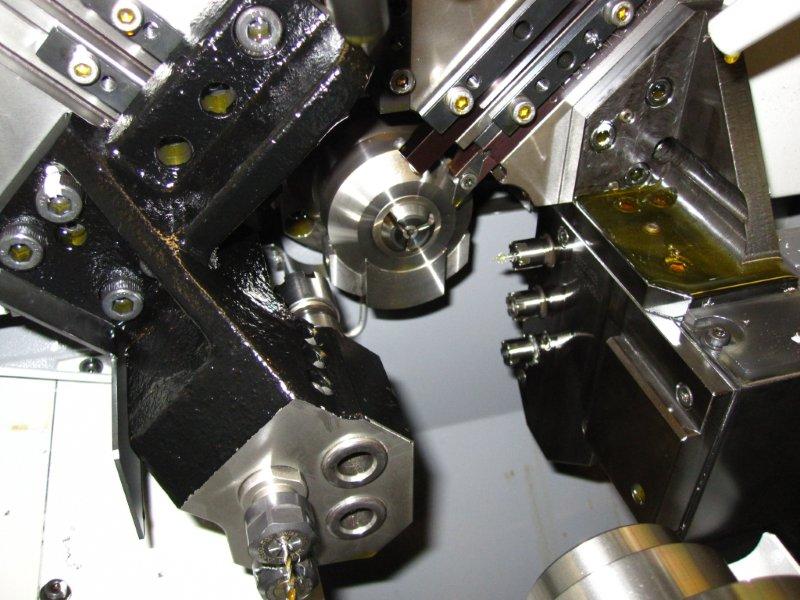

Citizen B12 front inside

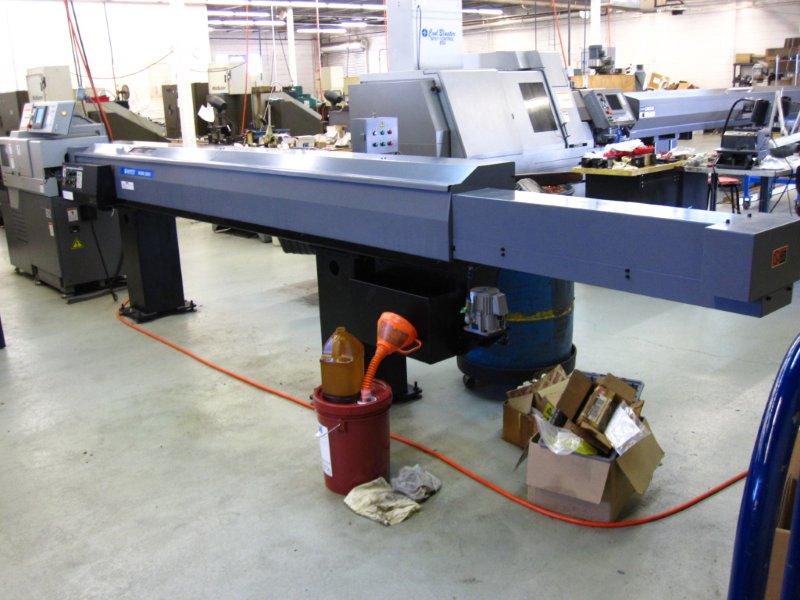

Citizen B12 Barfeeder

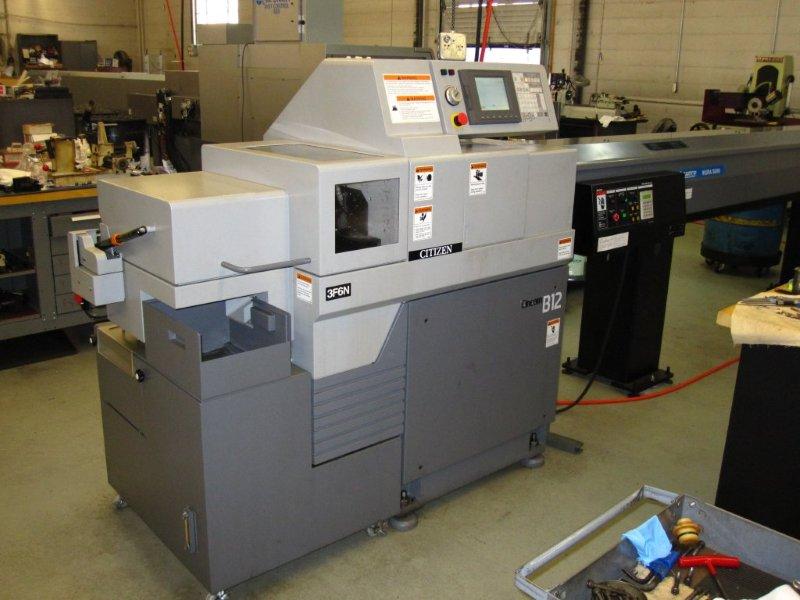

Citizen B12 swiss cnc front

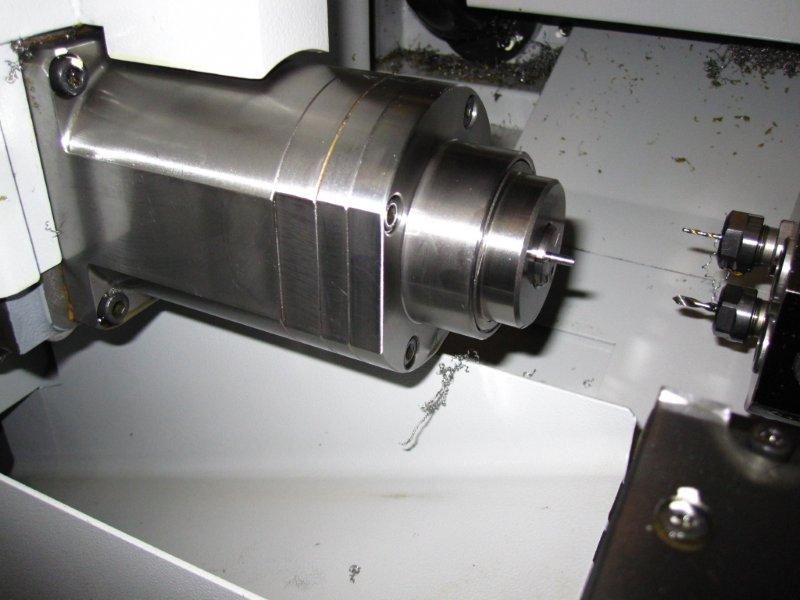

Citizen B12 subspindle
