Used GANESH Cyclone CS32 with LNS (LIKE NEW)

2006 Ganesh Cyclone CS32 CNC Sliding Headstock with LNS Express 332 Magazine Barloader

2006 Ganesh CS32 with LNS Express 332 Magazine Bar-Feeder, 7 Axis, 11 Live Tools, Simultaneous Subspindle, C-Axis on Main and Sub-Spindle. Machine has 2000 Hours and is in Like New Condition, Can be seen under power and in production.  All misc. Tooling, Holders, Collets Etc.  Possible 1 Year extended parts warranty available from manufacturer. These machines are the hottest new sliding headstock machines on the market today.

MACHINE FEATURES:
- Sliding Head Stock w/out a Guide Bushing
- Simultaneous 7-Axis
- Synchronized Subspindle
- 32mm Bar Capacity (1.25) (36mm w/Bar Prep)
- 10HP, 6000rpm Spindle
- C-Axis on Main & Sub-Spindle
- 27 Tool Stations
- 11 Live Tools (7 Main, 4 Sub.)
- Chip Conveyer System with Cart
- Parts Catcher with Conveyer & Bin
- Hydraulic Collet Chuck
- Rigid 8,000lbs Construction

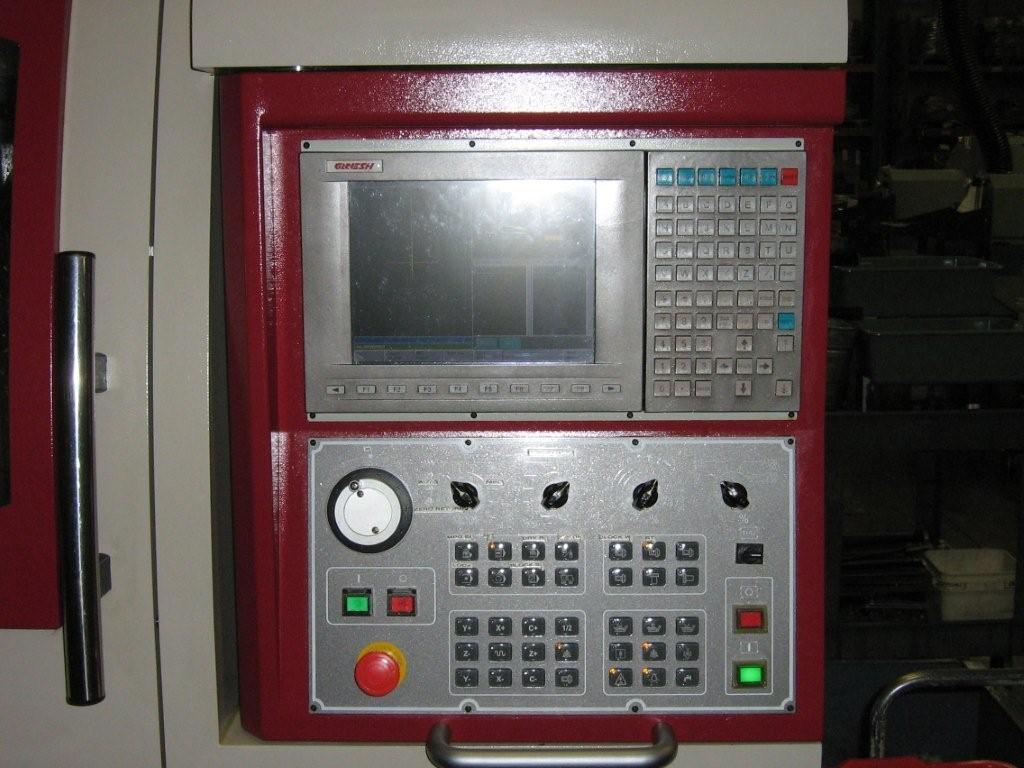

- FANUC Compatible PC Based Control
- Mitsubishi Servo Drives and Motors
- NSK Spindles and Bearings
- NSK Preloaded Double Nut Ball Screws

- THK Linear Guide Way System (Germany)

The collets to go with the machine are TRAUB A 32.  1 each as follows:
RD.                   Ext Nose         HEX                  Ext Nose

13MM               13MM               13MM               13MM
9/16                  9/16                  9/16                  9/16
5/8                    5/8                    5/8                    5/8
11/16                11/16                11/16                11/16

                        20MM
7/8                    7/8                    7/8                    7/8
15/16                15/16                15/16                15/16
1"                        1"                      1"                     1"
1 1/8
1

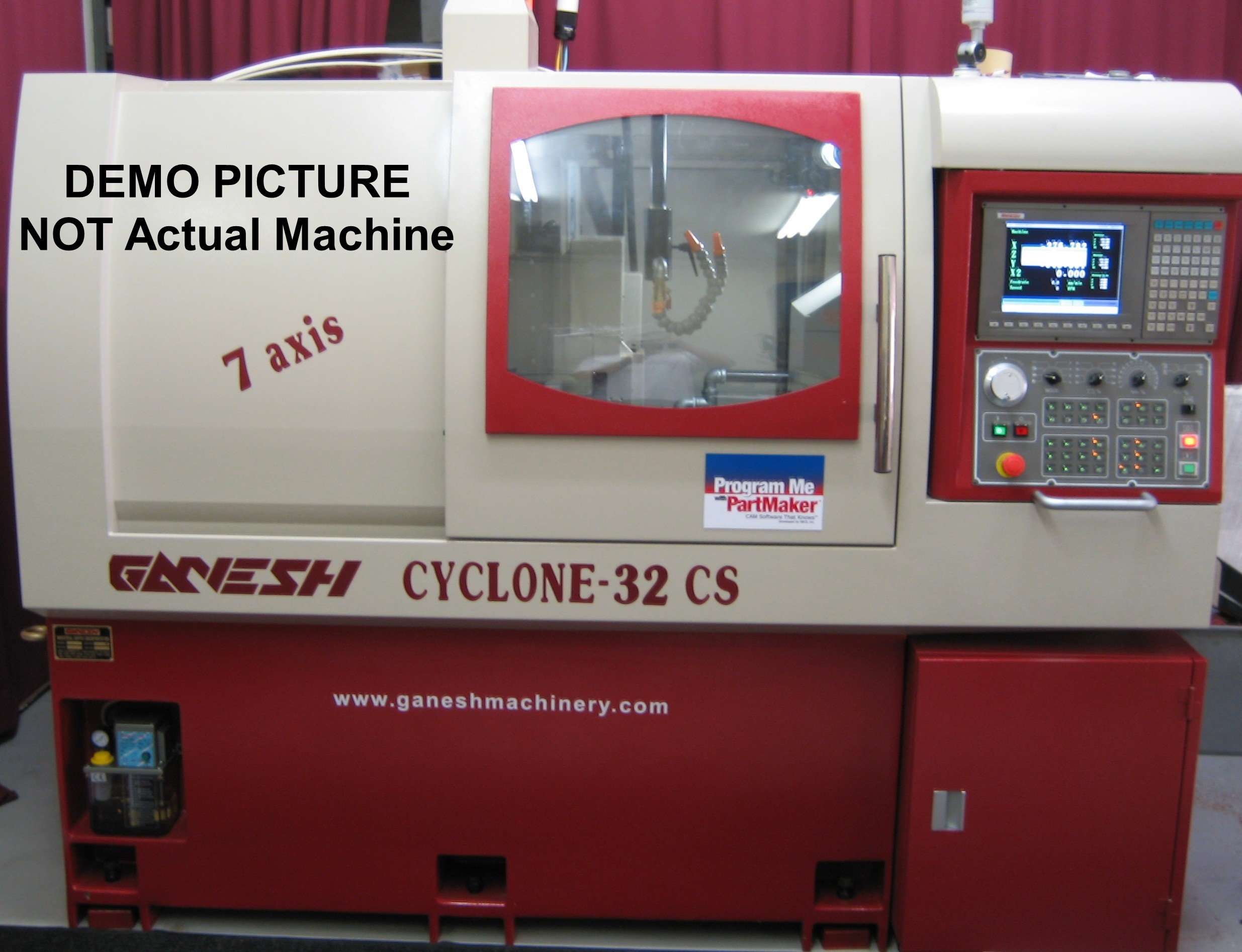

Used Ganesh Cyclone CS32 Front view

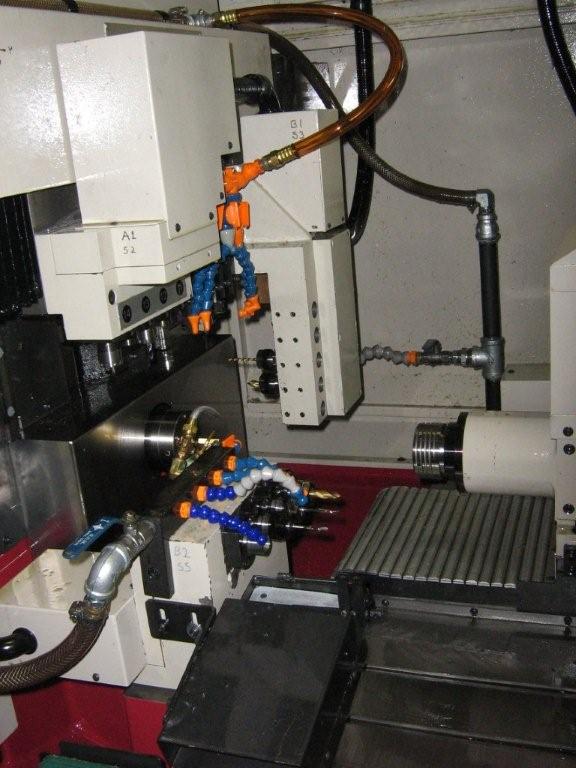

Used Ganesh Cyclone CS32 Inside view

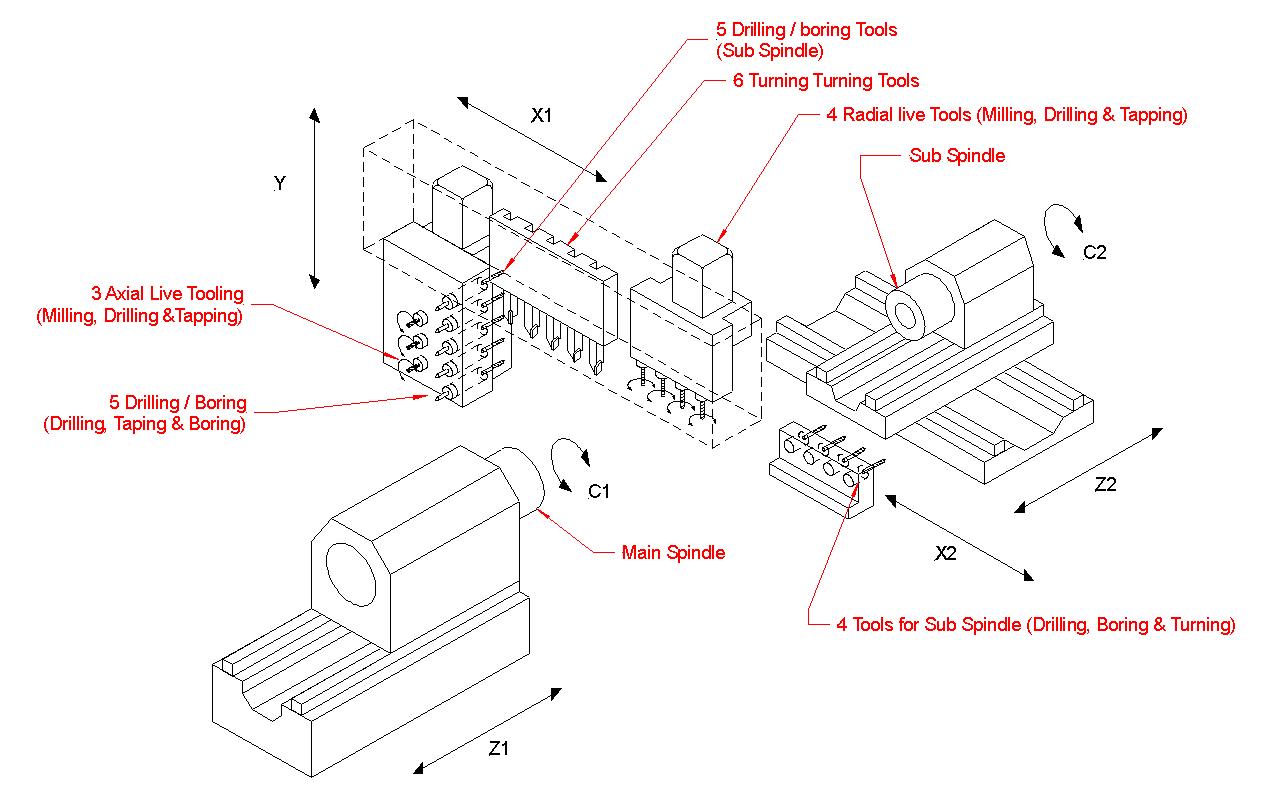

Used Ganesh Cyclone CS32 CAD

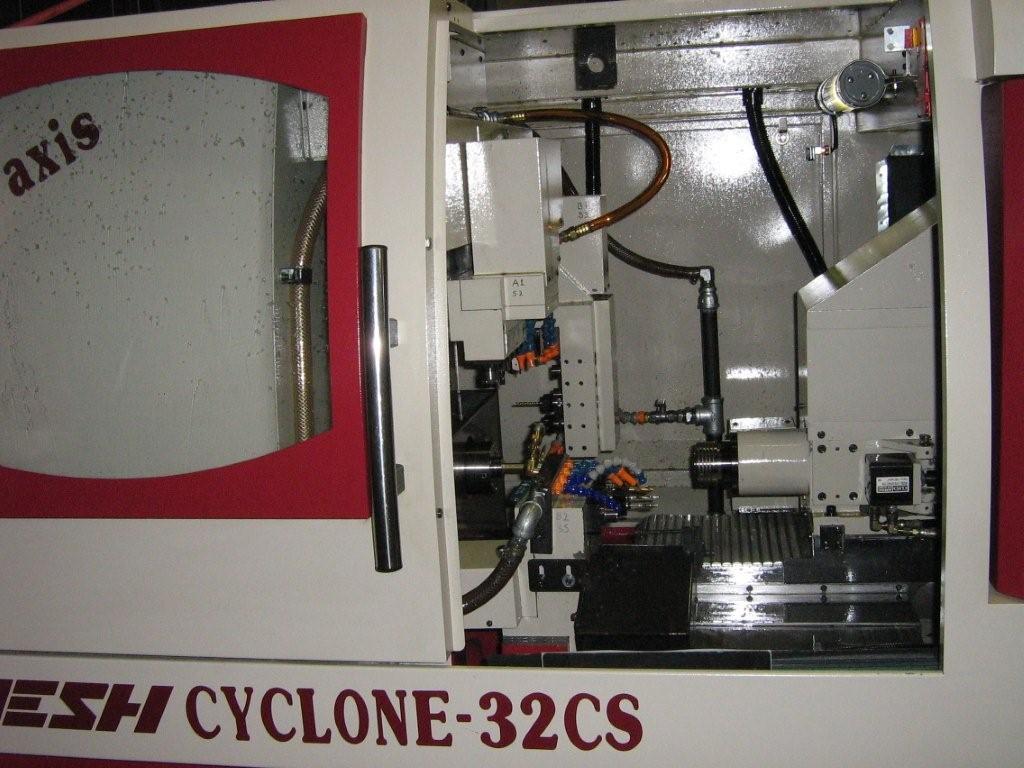

Used Ganesh Cyclone CS32 Front Inside

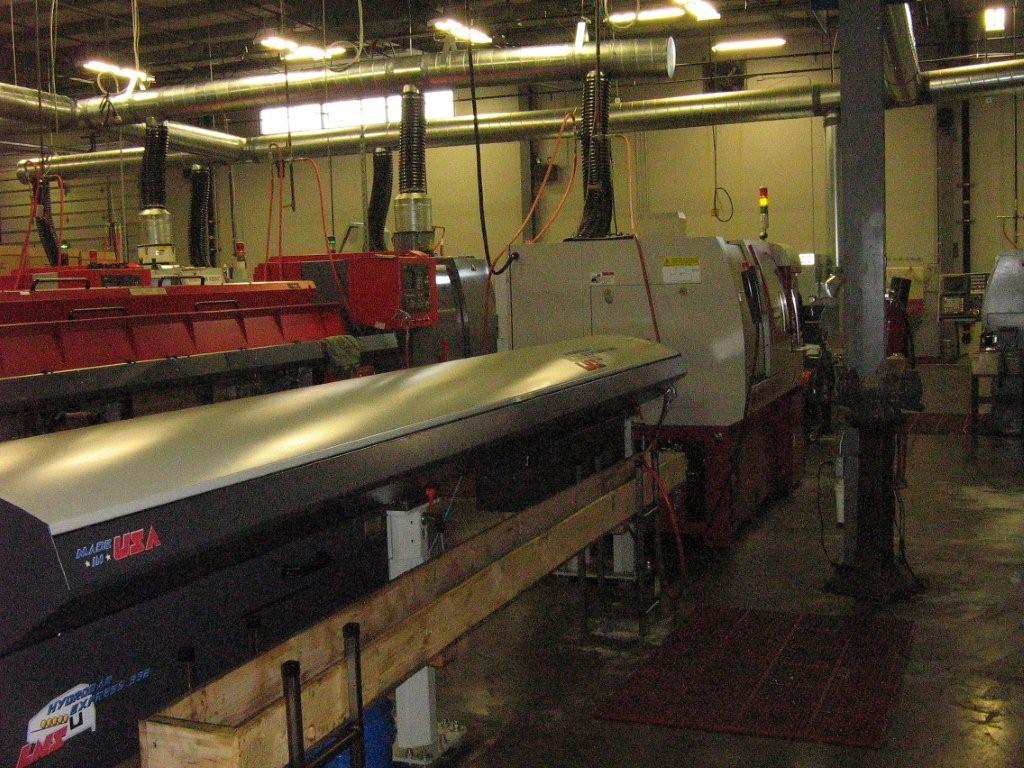

Used Ganesh Cyclone CS32 LNS Express 332 Barloader

Used Ganesh Cyclone CS32 LNS Express 332 Barloader
