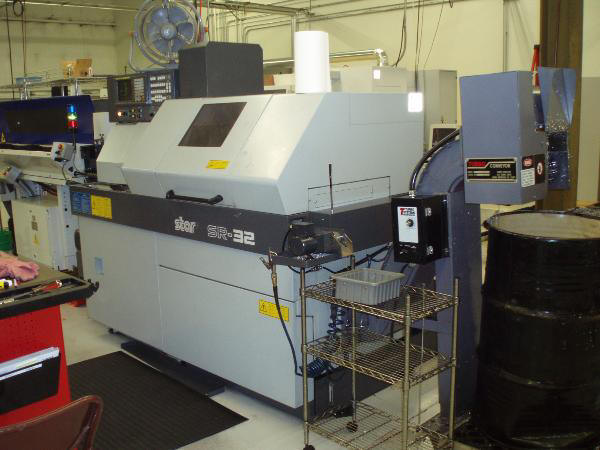

2000 Star SR32 Used CNC Swiss Lathe
SPECIFICATIONS:
- max bar diameter : 32 [mm]
- main spindle stroke : 310 [mm]
- main spindle stroke with driven cone :
295 [mm]
- spindle power : 7.5 [kw]
- spindle speed : 350-7000 [rpm]
- C axis on main spindle
- number of turning tool-holders : 6
- number of driven tool-holders : 4
- driven tools rotation speed : 350-5000
[rpm]
- number of tool-holders at combined
attachment : 4
- maxi diameter in counter-spindle : 32
- counter-spindle rotation speed :
350-7000 [rpm]
- counter-spindle power : 3.7 [kw]
- counter-spindle indexing : 1°
- counter-spindle stroke : 125 [mm]
- power : 20 [kw]
- dimensions : 1700 x 2515 x 1700 [mm]
- weight : 2900 [kg]
EQUIPPED WITH:
- FANUC CNC control 18i
- 3 radial driven tool-holders
- 1 axial tool-holder
- 4 fixed tool-holders in
counter-operation
- Lubricating tank with pump
- Ran Oil
- Excellent Condition
|
Call or
email ISMS
for Machine Quote
