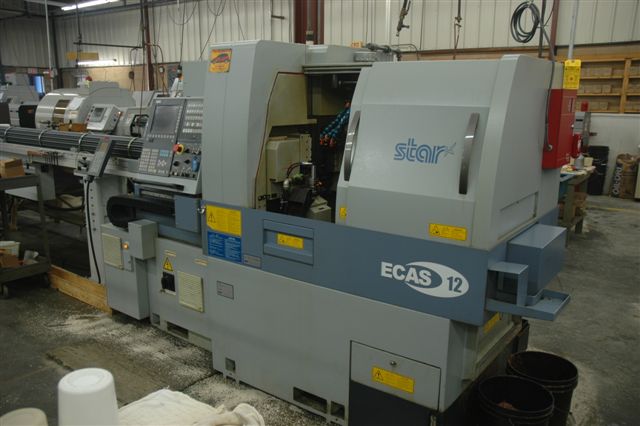

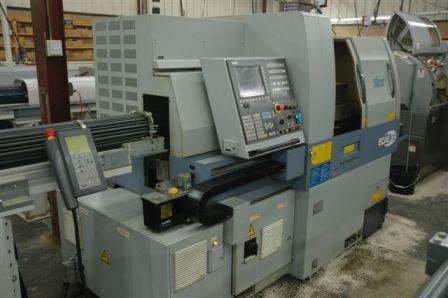

1/2", STAR, ECAS 12, SIEMENS 840DI, 2006, 10 Axis, C-Axis Main/Sub
Max Machining Diameter: 13mm (1/2")
Number Of Tools (Front): 3 Tools (opt)
Power Driven Tools (Rear): 3 Tools (opt)
Max. Drilling Capacity: 8mm (5/16")
Max. Tapping Capacity: M6 X P1.0
Max. Milling Capacity: 10mm (25/64")
Max Slotting Capacity: 1.5mm(W) X 4mm (D)
Main Spindle Indexing Degree: 0.01 Degree (C-Axis Control)
Main Spindle Speed: 12,000 RPM
Main Spindle Motor: 5 HP
Power Driven Tool: 8,000 RPM
Power Driven Drive Motor: 1 HP

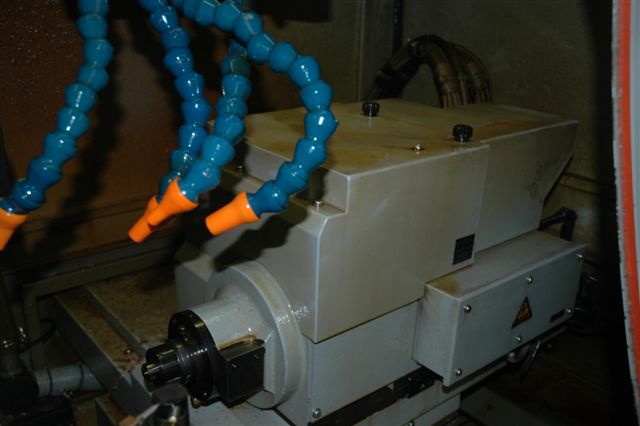

SUBSPINDLE
Max Chuck Diameter: 13mm (1/2")
Number of Tools: 4 Tools
Sub Spindle Minimum Indexing Angle: 0.01 Degree (C Axis Control)
Sub Spindle Speed: 12,000 RPM
Sub Spindle Motor: 5 HP
Dimensions (Approx): 8.5'L x 3.75'D x 6'H
Weight (Approx.): 7700 lbs

Equipped With (To be Confirmed by Buyer):
Part Conveyor

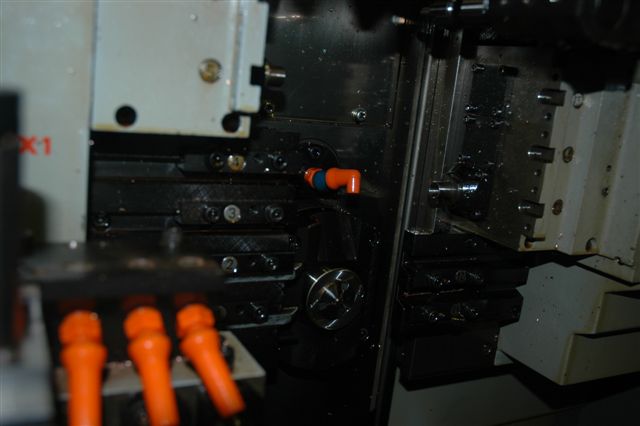

Power Driven Unit (X1 & X3 Tool Post)
571-63 (6 pcs.) Cross Mill/Drill Units (X1 & X3 Tool Posts)
571-06 4 Station Tool Holder for 3/8"
571-05 2 Station Tool Holder for 3/8"
4 Spindle Sleeve Holder (X3 Tool Post)
573-03 Rotary Guide Bushing Unit with Air Purge System
Broken Cut Off Tool Detector
Parts Separator
Air Regulator
574-59 Coolant Oil Flow Sensor
574-75 Sub Spindle Air Blow Air Purge
574-57 Back 4-Spindle Power Driven Unit
Sub Spindle Front Parts Ejector Unit
NOT INCLUDED: Fire Supression System & LNS Tryton)
Machine is in Excellent condition and can be seen under power
