2001

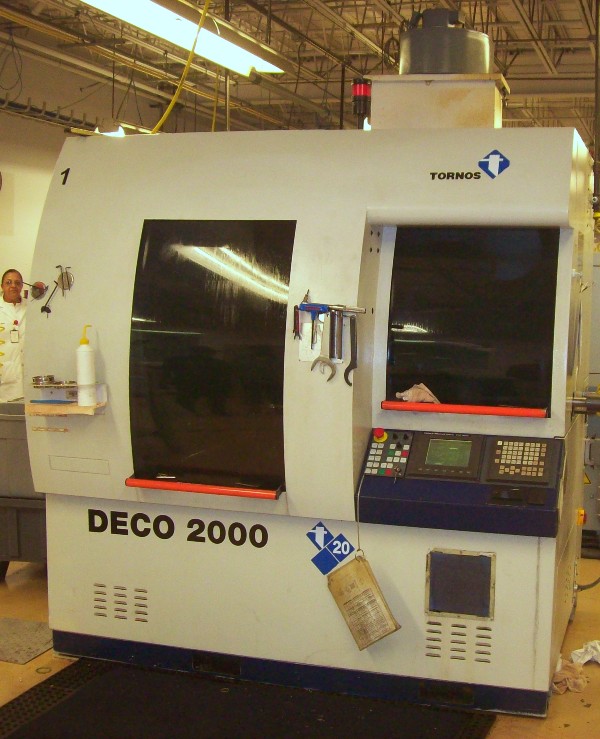

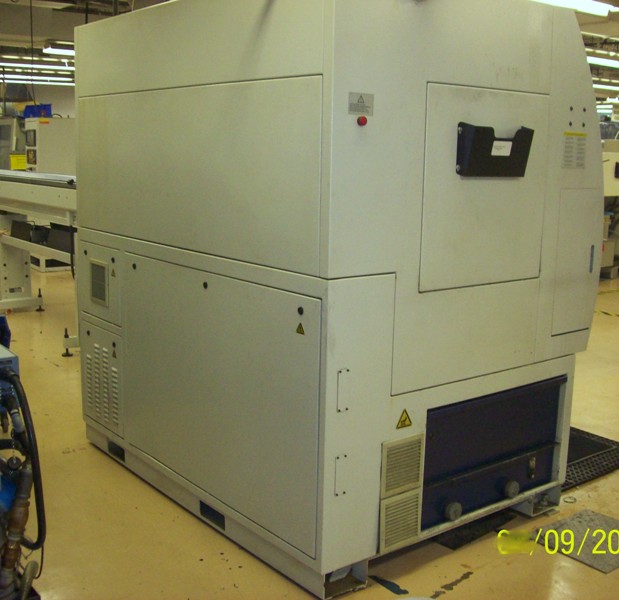

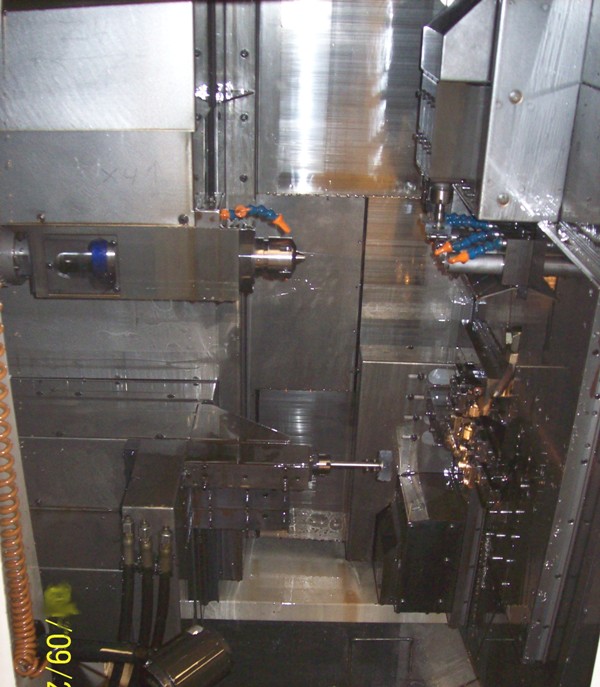

Tornos Model Deco 20 10 Axis Swiss CNC with
Numeric Parallel Type PNC-Deco Control
Equipped With:
Soft & Instructions in English
Standard Voltage 220v / 60 Hz / 3 Phase
1 Each New Transformer 50 Hz 60 Hz / 200v 220v 230v 240v
500v
(Never Used)
Standard Color
Synchronous Revolving Guide Bushing
Drive for Revolving Guide Bush
Interface for Iemca Bar Feed

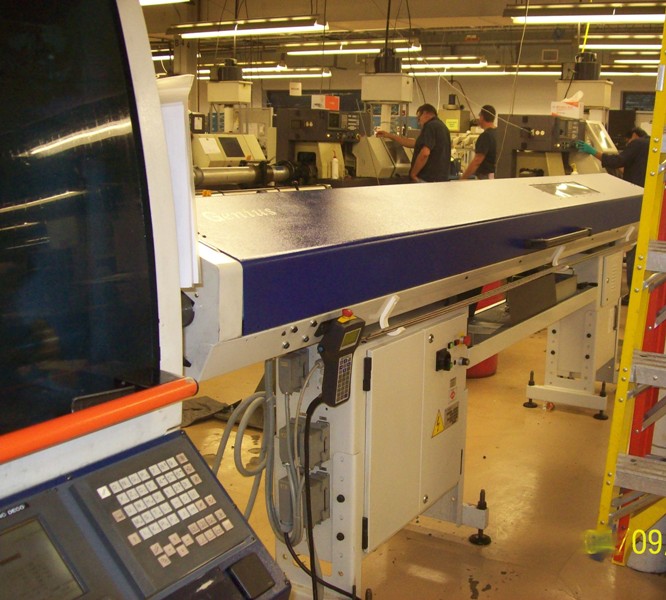

Iemca Magazine Bar Loader Model Genius 120/37
6.0mm to 13.5mm Bar Guide
C-Axis for the Main Headstock
Adjustment of Clamping Pressure
C-Axis for Counter Spindle w/ 0.1 Degree Indexing
Motorization S3
Positioned Spindle Stopping
Adjustment of Counter Spindle Clamping Pressure
Pneumatic Part Ejector for the Counter Spindle
Workpiece Receptacle, Max. Length 135mm
Cleaning Device w/ Oil Thru the Counter Spindle
Motorization S5 for Vertical Spindles
Cross Milling / Drilling/ Tapping Unit
Additional Functions Socket
Auxiliary High Pressure Coolant Pump (290 psi)
Triple Output for High Pressure Pump
Specifications:
Max. Bar Capacity 20mm (0.787”)
Minimum Bar Capacity (Recommended) 6mm (.236”)
Length of Parts – Guide Bush Turning 200mm (7.87”)
Programmable Spindle Rotation Speed 0 – 10,000 RPM
Positioned Indexing & Stop, Increments 0.01 Degree
Max. Spindle Power 5.5 kW (7.5HP) AC
Guide
Bush Holder (X1-Y1) (X2 – Y2)
Number of Tools in the Guide Bush (Fixed or Turning) 2
x 5
Tool Section 16 x 16 mm
Number of Cross Millers / Drillers in the Guide Bush 4
Programmable Rotation Speed 100 – 8000 RPM
Max. Power of Turning Spindles 2.2 kW (3 HP) AC
End
Unit (X3 – Y3)
Max. Number of End Tools (Fixed or Turning) 4
Programmable Rotation Speed 100 – 6,000 RPM
Max. Power of Turning Spindles 2.2 kW (3 HP) AC
Counter-Spindle & Back-Operation (X4 – Y4 – Z4)
Max. Diameter Clamping Capacity 20mm (.750”)
Standard Length of Parts 200mm (7.87”)
Programmable Rotation Speed 100 – 10,000 RPM
Positioned Indexing & Stop, Increments 0.1 Degree
Max. Number of Back-Operations 7
Number of Fixed & Turning Spindles 7
Programmable Spindle Rotation Speed 100 – 8000 RPM
Max. Power of Turning Spindles 2.2 kW (3 HP) AC
Call or
email ISMS
for Machine Quote
